Ammunition reloading is an activity that, like any craft, features a leveling-up system built around increasing precision. One of the flag processes for achieving high-grade moka cartridges is annealing nickle-plated brass. In this post, you will learn everything from why the annealing procedure is crucial to the skill of reloaders up to the careful step-by-step implementation of safe and effective annealing. You will also learn some of the most frequent mistakes, ways to enhance the lifespan of your brass, and the equipment required to efficiently accomplish the task and avoid getting it wrong the first time. Whether you’re an expert reloader or someone just starting, this post assists you with strategies scoped in approaches for effortless consistency and longevity of your reloads. Approach with eagerness, as this comprehensive guide has everything you’ll need to prepare for the final touches to your masterpiece.
What Is Annealing and Why Should You Anneal Nickel Plated Brass Cases?
Annealing refers to applying restricted amounts of heat to brass cases to obtain a specific temperature until bestowing softness upon them, adding scope for additional bending without breaking. This metallurgical technique is required in nickeled brass cases that grow brittle due to repeated inflating and deflating after resizing. While annealing, you improve the case’s life and minimize the risk of fracture and splitting along with neck tension, which is more predictable. This ensures tight coupling of the components and thus enhances accuracy and performance when reloading.
Understanding the Annealing Process for Nickel-Plated Cases
When annealing, I focus on temperature and timing to restore ductility on nickel-plated brass cases without damaging the hexagonal design. A dull red color is achieved (without overhealing other parts of the case) when the necks of the cases are overheated on the annealing machine or during torch necking. Nickel plated brass is rather delicate, the wrong coloring temperature can weaken the brass or the plating. Depending on the method, I allow the cases to cool naturally or quench them in water after annealing. These techniques provide consistent neck tension while prolonging case life during reloading.
How Annealing Affects Brass Hardness and Case Longevity
Annealing soft metals in terms of work hardening refers to their crystalline structure. The structural realignment processes are done while lifting the brittleness and, in turn, improving durability. The hexagon pattern is controlled at proximally 650° to 750°F (343°C to 399°C). Restoring flexibility at the neck and shoulder of the drilled hole restores the piece’s versatility. When the brass is work-hardened, cracking is likely to occur, compromising its functionality, lifespan, and case sturdiness.
When done correctly, annealing can greatly enhance case life and improve performance by enabling more reloads. Proper annealing improves case neck tension, which is essential for firing consistency and accuracy, as forensics accuracy requires precision bullet seating. Careful, close control of temperature for annealing is crucial, as overheating can rot other parts of the case, such as the head, leading to dangerous conditions. Tools like temp-indicating paint and temperature-sensitive crayons aid in applying heat within the boundaries of the safety zone, thus avoiding sapping the strength of parts and creating unsafe conditions.
Comparing Regular Brass vs. Nickel-Plated Brass Annealing Requirements
In my case, I have observed that the core annealing process is the same for both types of brass. Yet, fundamental differences exist regarding the requirements for any auxiliary processes performed. With regular brass, the problem of annealing is much easier due to the uniformity of material characteristics. With nickel-plated brass, you need to be extra careful with the nickel layer in terms of damage to the surface because of the coating complications for heat transfer.
Regarding regular brass, its annealing temperature tends to fall between 650°F and 750°F; this optimally softens the metal while maintaining its structural integrity. With nickel-plated brass, however, I recommend keeping the temperature lower–around 650°F—to avoid further damage to the plating. Moreover, short, uniform exposure times are crucial for all nickel-plated cases to prevent peeling of the nickel layer.
Tools such as temperature-sensitive crayons and digital infrared thermometers allow accurate temperature control for both materials. However, achieving effective results when annealing brass requires great consistency and patience.
Step-by-Step Guide to Annealing Nickel-Plated Brass Cases
- Safety First
When working with tools or machinery, ensure proper safety equipment, such as heat-proof gloves, goggles, and an adequately ventilated work area.
- Prepare Your Cases
Thoroughly scrub the nickel-plated brass cases to remove oil contaminants, dirt, and foreign particles. Cleaning the case will help attain uniform heating during the annealing process.
- Set Up Your Equipment
Set up a propane torch or an induction annealer as the designated heat source. Prepare temperature-sensitive crayons or infrared guns to aid in monitoring the required temperature.
- Control the Heat
When monitoring the temperature, ensure that you do not heat above 650F. Careful heating of the neck and shoulder of the brass case should be done in increments to ensure the areas do not exceed set temperature values.
- Monitor Exposure Time
While heating, avoid using excessive or unequal heating, which can damage the brass components and nick plating and weaken or deform the structure.
- Cool the Cases
Ensure that the cases air cool by themselves. Avoid using water to cool rapidly, as this will cause the nickel to crack and, in turn, flake.
- Inspect and Store
Inspect the cases for signs of defects such as peeling and discoloration. Properly label the instances to enable easy identification and store them for future use.
If you need to anneal your nickel-plated brass cases, these steps will help you do so effectively while maintaining their beauty.
Preparing Your Nickel-Plated Brass for the Annealing Process
Ensure to wash the brass cases thoroughly before the annealing process, as they must be free of dust, carbon, and oil. This is important, as any contaminants can hinder the heating process of the brass. Also, check the cases for damage, including cracks or excessive wear, as damaged instances should not be annealed. Ensure the cases are correctly resized and primed, guaranteeing consistency throughout the annealing cycle. After this, group the cases by caliber and arrange them in a way that is aesthetically appealing and straightforward. Through these guidelines, I ensure that the nickel-plated brass is ready for annealing, enhancing its performance while extending its lifespan.
Temperature Control for Different Caliber Nickel-Plated Cases
It’s essential to maintain proper temperature control when annealing nickel-plated cases to prevent damage to the plating or the weak points of the brass while preserving the structural integrity. With nickel-plated cases, the brass underneath and the nickel above layers require careful heat application. Typically, the optimal annealing temperature for brass cases is 650°F to 750°F, which is 343°C to 399°C. However, these cases often require lower temperatures or reduced exposure time to avoid flaking or discoloration of the nickel coating.
For smaller calibers such as .223 Remington, a quick heat exposure at the lower end of the temperature range around 650°F usually works. For larger calibers such as .308 Winchester, uniform annealing may make it necessary to go more towards 730°F. An adequate heat source, such as a torch with a pleasing flame, an induction annealer, Tempilaq, or an infrared thermometer, is essential for accurate temperature control. C cases should be rotated evenly during breaching to avoid overheating specific sections and achieve consistent results. Enhanced case performance and longevity are achievable through controlled, calculated procedures.
Proper Quenching Techniques After Annealing
Quenching is typically air cooling after annealing, and I recommend not using water or oil cooling. As mentioned earlier, brass is frequently used for cartridge cases, and its quenching will not differ significantly from that in water or oil since it does not harden like steel. Natural air cooling ensures the annealing process works while preventing excessive material stress.
For convenience, the handles of the cases can be cooled in room-temperature water for safety, and that won’t alter the annealing results. Ensure the instances are dry before storing them so they do not oxidize or corrode. A consistent procedure enables one to achieve dependable and reproducible results after several trials.
Common Challenges When Annealing Nickel-Plated Brass
- Overheating the Material
Overheating could deform or damage nickel plating, negatively impacting its performance. To avoid this, it is necessary to track the temperature so that the prescribed annealing ranges are not overshooted.
- Uneven Heating
Non-uniform heating can cause unbalanced softness and warping of the brass cases. Tools such as a temperature-controlled annealer should be used to achieve uniform heat application.
- Plating Delamination
If the annealing treatment is not adequately controlled, the nickel plating is prone to delaminate from the brass substrate. High-temperature exposure should be minimized to mitigate this risk, and cases must be handled carefully.
- Corrosion Risk After Annealing
Corrosion or oxidation is a risk incurred if proper drying after water quenching is not used. It is necessary to completely dry the cases and store them in a cool, dry place.
- Cracking or Weakening
More or continuous application of annealing increases the risk of cracking, weakening the cases’ structural integrity. Follow a consistent schedule to mitigate over-annealing.
If you maintain proper technique while attending to these challenges, the lifespan and reliability of the cases will significantly increase.
Preventing Nickel Plating from Flaking During Annealing
I will follow a few steps to mitigate the risk of nickel flaking during the annealing process. One uses a lower annealing temperature than the coating brass because the heat will damage the plating. I use a dependable annealing machine or method that does not excessively heat the part. Also, I must scrub the cases to remove any ins contaminants like dirt and oils because they will cause uneven heating and stress during the annealing process, which is terrible for the nickel layer. These factors enable me to control flaking and maintain the integrity of my cases.
Troubleshooting Neck Sizing Issues After Annealing
When dealing with issues related to neck resizing after an anneal, one must remember a checklist of issues that can affect the performance or consistency of the case:
- Improper Annealing Temperature or Duration
He must check that the temperature settled in is between 750 F and 800 F. It is also essential that there is consistency in the time taken. Overheating can damage brass, which may result in soft necks that cannot correctly hold tension. Not heating can also result in a lack of the required stress relief.
- Case Material and Variations
Changes in brass alloy or differences between the batches can change the annealing process. To achieve uniformity with a plated case, attention needs to be paid to easy cleaning; cases need to be trimmed to size per the heater selected. Cases must also be sorted by vendor and bought with the same batch to get uniform results. Nickel-plated cases need special attention as nonuniform preheating before the primary heats can cause chipping or sizing issues.
- Die Adjustment and Neck Tension
Check your sizing die settings against the individual setup for each caliber. Low-value neck tensions require further opening up to 0.002 or 0.003” below bullet diameter to prevent overtightening. In the circle, for almost all the bolts where tension is present, overtightening must be avoided to avert over-deformation, reducing the part’s survivability. A die not appropriately adjusted can lead to inconsistent holding or striking and resizing too far.
- Case Lubrication and Cleanliness
Ensure the resized cases are lubricated to prevent unwanted friction during the resizing step. Oil, dust, or residues are bound to be present on the casing, so it is essential to clean them before burning to achieve uniform heating.
- Uniformity in Case Length
If the moved standstill principle applies evenly, cases must be equalized to a uniform length after removing the uniformity. Because of the lack of uniformity, the neck could cause multiple bordering mismatches, leading to extreme driving in smoothing.
All these steps will get you closer to achieving more precise neck sizing and better brass performance. Proper tracking and monitoring can improve accuracy and consistency throughout your reloading process.

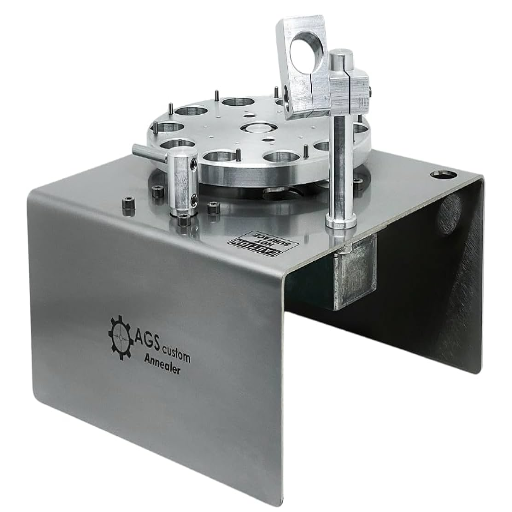

Tools and Equipment for Annealing Nickel-Plated Cases
To anneal nickel-plated cases properly, the following tools and equipment are essential:
- Annealing Machine—A trusted annealing machine is needed for the consistent and controlled heating of nickel-plated cases. The machine selected should have strict upper-limit temperature controls so the nickel casing is not overheated.
- Tempilaq or Temperature Indicator—A temperature-indicating device like Tempilaq makes it easy to ensure that the safe and ideal annealing temperature, at which no damage is sustained to the material, is attained.
- Case Holder/Trays – The holders and measuring trays are used to maintain the proportion of the pieces during the annealing so that all the parts heat equally and are easy to handle.
- Propane Torch or Heat Source—Annealing, a process demanding uniform heating, requires that the heat be adjusted to a reliable and thermally stable source, such as a propane torch.
- Protective Gear – Use safety goggles alongside gloves that can withstand heat to cover yourself and maintain safety throughout
With this toolset, you will protect the brass’s structural integrity while successfully annealing the nickel-plated cases.
Best Annealers for Nickel Plated Brass
Concerning nickel-plated brass, selecting an annealer necessitates incorporating precision, reliability, and repeatability.
- Annealing Made Perfect (AMP) Mark II
-
-
- Provides advanced induction annealing technology that features accurate temperature measures and prevents over-annealing.
- It perfectly fits all model nickel-plated brass cases without risking the integrity of the nickel plating.
- Features a custom calibration system for specific levels of brass annealing, enabling precise hardness matching for maximum performance.
- Temperature Range: Set within predetermined limits for all types of brass.
- Voltage Input: Input ranges from 110V to 240V, detecting positions globally.
-
- Bench-Source Vertex Annealer
-
-
- This annealer is well-liked among custom reloaders because it utilizes dual adjustable burner torches to maintain even heat application throughout the case.
- Applicable to various sizes of cases, including nickel-plated brass.
- Maintains set rotational speed to control the heat applied during exposure, preventing overheating.
- Power Source: Standard propane or MAP gas torches.
- Rotational Speed Adjustment: The desired rotational speed control is exercised for manual operation.
-
- Giraud Case Annealer
-
-
- This device’s ease of use and dependability make it popular. It uses flame annealing to ensure even heating.
- The design employs a spring-loaded brass carrier bearing for consistent gripping of cases.
- Compatible with cases and other inserts made from nickel-plated brass and all other types with adjustable settings.
- Heat Source: The propane torch provides standard heating.
- Case Turntable Speed: Consistent results are achieved by adjusting the turntable’s speed during annealing.
-
Incorporating these annealers enables ideal performance without compromising the durability of nickel-plated brass cases. All the suggested options provide an optimum blend of uncomplicated and complex accuracy, catering to novice and experienced reloaders.
DIY Annealing Setup for Reloading Enthusiasts
The productivity gains of DIY systems tend to be quite appealing, and I can say from personal experience that a propane torch used with a rotating case holder or a turntable fits the bill perfectly. Ensuring that you have a thermal sensor or Tempilaq that can measure distal temperature with the desired threshold and needs to be near 750-800 degrees Fahrenheit for brass cases is key.
- Aspects for DIY Setup:
- Heat Source: Common leave torch.
- Case Holder/Turntable Speed: Adjustable. Set to 3-6 rotations per minute to deliver uniform heating.
- Temperature Monitoring: Employ Tempilaq or an infrared thermometer to keep the temperature between 750 and 800 degrees without overheating.
- Power Source (if the turntable is motorized): Preferably 12V DC or AC wall adapter.
Managing the heat, especially when combined with monitoring the temperature, is an essential element that provides precise and repeatable results for the anodizing process and helps elongate the lifecycle of brass bolts through multiple reloads.
How to Test If Your Nickel-Plated Cases Need Annealing
A simple hardness test should be conducted to evaluate if your nickel-plated cases require annealing. Using a steel implement or even your fingernail, gently apply force to the area around the case’s neck or shoulder. It may need to be annealed if the material is too hard, brittle, or overly complicated to scratch. Furthermore, the case neck should be assessed for cracks or other signs of stress that are apparent markers of metal fatigue. After multiple reloads, periodic testing can determine when cases require treatment to improve performance and longevity.
Signs of Work Hardening in Nickel-Plated Cases
Several simple methods can be used to detect work hardening in nickel-plated cases. I notice a lack of ease when it comes to resizing the case. More effort in this step tends to correlate with work hardening. In addition, I will check the case neck for tiny fractures or more significant breaks, as these are indicators of repeated use stress. Another approach I employ is that of case necks, which I bend. If necks bend easily and feel somewhat malleable instead of stiff, brittle, and hard, chances of work hardening are high. Monitoring these factors consistently will greatly enhance firearm safety and reliability during reloading.
Measuring Case Neck Tension in Nickel-plated Brass
While assessing case neck tension on bullet cases made with nickel-plated brass, I measure the neck’s outer diameter using a micrometer before and post-bullet seating. The optimal difference noted should fall between 0.002 – and 0.003 inches. Such a difference ensures appropriate tension for bullet retention while not adding undue stress to the brass. Further, uniformity around the neck is verified using a neck-tension gauge or a concentricity tool, ensuring no discrepancy. Like any other material, nickel-plated brass should be monitored for signs of flaking or irregularities that may affect tension. Following these guidelines allows me to achieve uniform chamber pressures and reloading reliability.

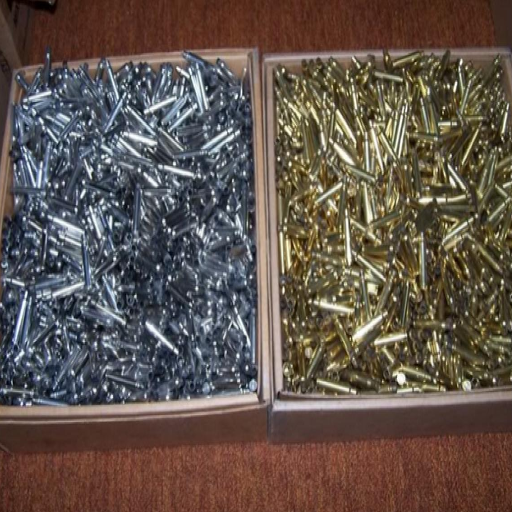

Differences Between Annealing Normal Brass and Nickel-Plated Brass
Due to their unique characteristics, regular and nickel-plated brass require a different annealing approach. Since regular brass is softer, it is easier to anneal because the heat can be directly applied to the brass without adding layers. As it provides better thermal conductivity and is easier to see when it changes color, there is better monitoring of brass’s annealing processes.
Annealing of nickel-plated brass, however, is more involved. It does not exhibit precise color changes that brass does, and its nickel plating has higher melting points. The nickel layer can flake or become brittle and thus weaken the casing when annealed during excessive heat. For this reason, it is imperative to keep strict control over temperature to prevent damage to the plating while controlling steam to maintain consistent coverage to the brass for performance agility.
Comparing Annealing Techniques Between Unplated and Plated Cases
The techniques differ most between unplated and plated cases regarding the materials’ thermal characteristics and responses to heat. There is a less available range of cue signals with unplated brass cases, whose range of optimizing temperature is 650°F-750°F. This temperature is supported to be reached at the decrease to sweetness stage softening, which is guaranteed to enhance, not destroy, structural integrity.
Conversely, some plated cases, specifically nickel-plated brass, are more sensitive to temperature control because of the higher melting point of nickel and the absence of color change. The nickel plating on brass must be protected from delamination or brittleness at temperatures above 450°F—500°F. Consistency is best achieved with infrared thermometers or heat-controlled annealing machines.
Key aspects include:
- Unplated brass cases:
- Optimal annealing temperature: 650°F – 750°F.
- Brass color indicator: Dull cherry red.
- Cooling method: Typically sufficient air cooling.
- Nickel-plated brass cases:
- Optimal annealing temperature: 450°F – 500°F.
- Brass color indicator: None; precise tools are necessary.
- Cooling method: Air cooling, avoiding thermal shock.
Both types benefit from a uniform, gradual heating to achieve consistency at the neck and shoulder of the case. While annealing machines can effectively treat both types, care must be taken when setting plated cases to avoid damaging the plating.
How Nickel Plating Affects Heat Transfer During the Annealing Process
The Thermal Properties of Nickel Plate Impacts Heat Transfer During Annealing Done on Nickel Plated Cases. Plated nickel’s thermal conductivity is less than brass or copper. Nickle-plated cases need a slight increase in the annealing time/temperature in command so the brass base attains the desired annealing temperature of about 450°F – 500°F. The upper limit also needs strict control due to the potential failure to maintain the plating and case quality. For effective management of this process, precise measuring tools like infrared thermometers and reliable calibrated annealing machines are vital.
References
Frequently Asked Questions (FAQ)
Q: How do nickel-plated cases differ from regular brass cases regarding annealing?
A: Nickel-plated cases have a thin layer of nickel over the brass, which affects heat transfer during annealing. The nickel coating has a higher melting point than brass, so you must be more careful with temperature control. While the annealing process is fundamentally the same as regular brass, nickel-plated cases may require slightly longer exposure time to achieve the same level of softening in the neck and shoulder areas. The good news is that proper annealing temperatures focused on the case neck won’t damage the nickel plating.
Q: Can I anneal nickel-plated cases using the same method as regular brass?
A: You can anneal nickel-plated brass using the same basic methods as regular brass but with some adjustments. The process should focus on heating the neck and shoulder areas until they reach a dull red glow (around 650-750°F), just like regular brass. However, you may need to extend the heating time slightly for nickeled cases due to the different thermal properties of the nickel coating. Many reloaders report better experience with nickel-plated cases when using temperature-controlled annealing machines rather than the handheld torch method, as they provide more consistent results.
Q: What happens if I try to anneal nickel-plated rifle brass at a too high temperature?
A: Overheating when you anneal nickel-plated cases can cause several problems. If the temp gets too high (above 800°F for extended periods), the nickel plating may discolor, bubble, or even separate from the brass. More critically, excessive heat will soften the case head and body, compromising structural integrity and creating a safety hazard. This is true for nickel and regular brass, but nickel plating can make the visual indicators more complex. Always use temperature-controlled methods and focus the heat only on the neck and shoulder regions.
Q: How often should I anneal nickeled cases compared to standard brass?
A: The frequency for annealing nickeled cases is similar to regular brass – typically every 3-5 reloadings, depending on your cartridge type and load pressure. However, some reloaders report that nickel-plated cases may benefit from more frequent annealing because nickel-plating can make brass less malleable during resized operations. Different brands of nickel-plated cases (like Rem, Winchester brass, or Federal) may also have different work-hardening characteristics. Pay attention to increased resistance when using your sizing die to indicate it’s time to anneal.
Q: Are there different considerations when annealing nickel-plated cases for various cartridge types, such as 30-06?
A: Yes, cartridge type matters when annealing nickel-plated cases. More significant cases like the 30-06 have more surface area and mass, requiring slightly longer heating times than smaller cartridges. High-pressure cartridges that undergo significant neck tension and expansion benefit more from regular annealing. The bottleneck shape of many rifle cartridges means you must be careful to heat only the neck and shoulder regions. Always separate your cases by caliber and type before annealing, as mixing different cartridge sizes can result in inconsistent results.
Q: Do I need special equipment to anneal nickel-plated brass?
A: While you don’t need special equipment to anneal nickel-plated brass, purpose-built annealing machines provide more consistent results than manual methods. Many experienced reloaders who have tried to anneal nickeled cases recommend temperature-controlled annealing devices that rotate the case while applying precisely controlled heat. If using the traditional torch method, consider using temperature-indicating markers or paints that change color at specific temperatures. This helps prevent overheating, which is especially important with nickel-plated cases where color changes in the brass are more complex to observe through the plating.
Q: Is there anything different about annealing nickel-plated cases from other brands?
A: There are differences when annealing nickel-plated cases from different brands. The thickness and quality of nickel plating varies between manufacturers like Remington, Winchester, Federal, and others. Some brands use thicker nickel coatings that may require slightly longer heating times. The base brass composition can also differ, affecting how quickly the cases work harden during resizing and shooting. Some reloaders report that certain brands of nickeled cases respond better to annealing than others. It’s worth keeping brands separated and noting any differences in performance after annealing.
Q: Can I anneal steel or other metal cases as I would with nickel brass?
A: No, steel cases should not be annealed using methods intended for brass or nickel-plated brass. Steel has significantly different metallurgical properties and melting points. Unlike brass cases, most steel cases are also not designed for reloading. While brass becomes more malleable with proper annealing, steel requires higher temperatures and different cooling methods to achieve similar metallurgical changes. For reloading enthusiasts, it’s best to stick with brass or nickel-plated brass cases, which are specifically designed to be reusable and respond well to proper annealing techniques.
Q: Should I clean nickeled cases before annealing?
A: Yes, cleaning cases before annealing is recommended, whether nickel-plated or standard brass. Clean cases allow for more even heat distribution and help you better observe temperature indicators. Oils, debris, or powder residue can burn during heating, potentially causing uneven annealing or contaminating the brass. While nickel-plated cases tend to show less tarnish and discoloration than regular brass, they still benefit from cleaning before annealing. Use a case tumbler with media or an ultrasonic cleaner to thoroughly clean your nickeled cases before beginning the annealing process.
