The versatility and cost-effectiveness of hot-rolled steel make it useful in many industries. Despite this, hot-rolled steel is not mainly known for increased strength or wear resistance, meaning it is often questioned whether it can be effectively hardened. In exploring this matter, this article will discuss the properties of hot-rolled steel and the processes necessary to harden it, endure a greater amount of stress, and enhance performance. By analyzing the characteristics of hot-rolled steel and the methods used, readers can understand further how this material can fulfill specialized industrial needs.
What are the characteristics of hot-rolled steel?
Hot rolled steel must first be hot rolled, and to do that, the steel needs to be rolled at extremes above the value of 1,700 F, which is the steel’s recrystallization temperature. This increases its malleability, making it easier to shape and form into various sizes and structures. Unlike cold rolled steel, hot rolled has a rougher surface finish as well as lacking in precise dimensions, this means that it needs to be bought in bulk. However, it is more economically friendly and widely used in precision work. This aids in the construction, automotive, and industrial fields. Hot-rolled steel is known for being rugged and versatile, and having these traits makes it an ideal candidate for this job.
Understanding the Surface of the Steel
In my evaluation of the surface of a steel piece, I noticed that the hot-rolled steel has a coarse and scaly surface due to cooling after it is rolled at high temperatures. This scaling is formed due to oxidation, and in most uses of this material, it does not affect its performance where appearance or a smooth finish is needed. In contrast, cold rolled steel undergoes additional steps and processes that remove the scale and produce a softer, more polished surface. Such a finish is ideal for use in tasks where standards of accuracy and beauty are essential. Decision-making on which types to use will depend on the required surface finish and defect tolerance for a specific application.
How Does the Carbon Content Affect Properties?
The amounts of carbon in steel are significant as they affect the material’s hardness, strength, ductility, and weldability. Higher carbon content increases hardness and tensile strength by decreasing ductility and weldability. Such characteristics happen because carbon serves as a hardening agent and improves the structure of steel on a molecular level – forming robust crystalline structures. However, this does reduce flexibility and machinability. On the other hand, softer steel with low carbon content is more ductile and can be used in cold-forming processes.
- Low Carbon Steel (up to 0.25% Carbon):
- Properties: Soft, malleable, easily weldable.
- Common Uses: Structural steel shapes, automotive body sheeting.
- Medium Carbon Steel (0.25% – 0.60% Carbon):
- Properties: Good strength and ductility, suitable for heat treatment.
- Common Uses: Parts of machinery, axles, and gears.
- High Carbon Steel (0.60% – 1.4% Carbon):
- Properties: Hard and wear-resistant but brittle.
- Common Uses: Springs, cutting tools, wires of high tensile strength.
Different steel grades are chosen based on their strength and ductility to meet the application’s specific requirements. For example, low-carbon steel is effortless to work with, while high-carbon steel is best suited for tools subjected to stress and requiring high hardness.

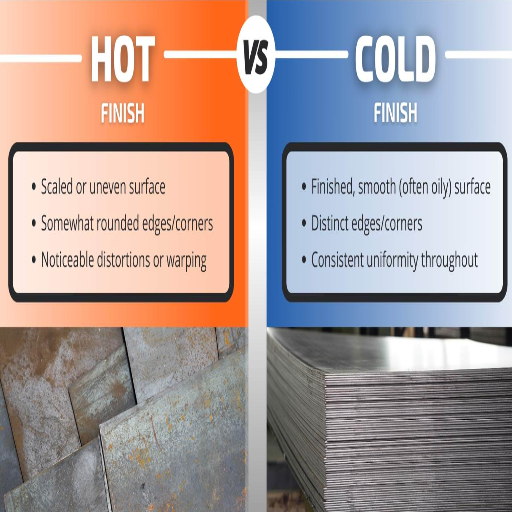

Comparing Hot Rolled vs Cold Rolled Steel
Hot-rolled and cold-rolled steel are processed differently, altering their properties and uses. According to my research, hot-rolled steel is processed at high temperatures (above 1,700°F—above recrystallization temperature), which facilitates the alteration of its shape but results in a rough surface and loose tolerances. As such, it is used in construction, railway tracks, and automotive frames where precision is not paramount.
Die, and other parts that require precise dimensions, a smooth finish, and sophistication are made using appliance components, furniture, and cold-rolled steel. After being hot rolled, the steel is further processed at room temperature, enhancing its surface hair thickness, shape, and pulling force.
Some aspects to consider include:
- Tensile Strength: Cold-rolled steel typically has a higher tensile strength than hot-rolled steel due to the strain hardening during the cold working process.
- Surface Finish: Cold-rolled steel has a smooth, polished surface, while hot-rolled steel has a rougher, scaled finish.
- Dimensional Accuracy: Cold-rolled steel is more precise and consistent in size than hot-rolled steel.
- Cost: Because there is less processing, hot-rolled steel is cheaper.
Because of the above factors, choosing the right option involves deciding which benefits outweigh the others for the project’s design and value.
Is Hot Rolled Steel Suitable for Hardening?
Whether hot-rolled steel is suitable for hardening depends on its chemical composition. Steels that contain higher carbon and alloy tend to be more receptive to hardening through quenching and tempering processes. Nevertheless, the initial hot-rolled steel surface roughness could challenge specific applications with surface finish requirements.
Exploring Heat Treatment Processes
For processes related to heat treatment, my focus lies on quenching, tempering, annealing, and normalizing. These alter the properties of the steel. With regards to hot rolled steel, its carbon content is essential for its hardening. Higher carbon content allows for quenching (case hardening by rapid cooling), where the steel’s hardness increases due to decreased temperature. Brittle-tempered steel with increased toughness is balanced by the enduring elasticity created by quenching. Brittle fracture-resistant steel is made using hardening methods. To enhance steel’s machinability, softer steel is produced using annealing and normalizing processes, improving uniformity and toughness. The composition of the steel, together with application requirements, dictates which processes are chosen.
Challenges in Quenching Hot Rolled Steel
The risks associated with the cooling of hot-rolled steel include its performance and structural integrity, which are some of the most severe challenges. Unequal cooling rates can cause distortion and cracking during the quench process, which is one of the main problems related to hot work. A hot-rolled steel part that needs to be quenched could experience thermal stress due to its geometry and thickness, leading to warping or fractures in the part. Risk minimization can be achieved by controlling the heat transfer rate.
The other concern with hot-rolled steels is the lack of uniform hardness, which is greatly affected by the steel grain structure, composition, and the cooling medium.–water, oil, and even air can affect the results. High-carbon steels allow for greater hardness but are prone to cracking, and low-carbon steels are soft and will not provide appropriate hardness.
- Quenching Medium Temperature:
-
-
- 50-80°C (this range prevents thermal shock)
- 30-60°C (required for slower cooling rates).
-
- Quenching Speed:
-
-
- Here is a critical cooling rate different for every grade and thickness.
- An example of medium-carbon steel could be ~100-200°C/s.
-
- Steel Composition:
-
-
- The carbon alloy content is generally between 0.2% and 0.8%.
- Other alloying items (like. manganese or chromium) impact hardenability.
-
- Heat Treatment Temperature:
-
-
- The temperature of the austenitizing stage for nearly all steel is 800-950°C.
-
- Post-Quenching Treatment:
-
-
- Tempering temperature can be as low as 150–700°C, where the brittleness is lowered.
-
Finally, scalability poses yet another challenge, especially for industrial use cases requiring uniform outcomes across components of different sizes. Sophisticated monitoring, precise control, and active quenching—for example, quenching in air-controlled atmospheres or agitation within quenching baths—can adequately address these issues.
Effect of Alloy Additions on Hardening
If I understand correctly, additions to the alloy heavily impact the hardening process due to changes in the material’s microstructure and mechanical properties. Elements like carbon, manganese, chromium, and molybdenum are often incorporated to strengthen the hardenability of steels. For example, carbon raises hardness levels due to martensitic transformation during quenching, while manganese increases hardening potential due to a reduction in critical cooling rate. Increased chromium and molybdenum content improve abrasion resistance, making the material less susceptible to deformation or cracking by maintaining carbides.
Some key factors are carbon content (0.2 to 1.0 percent), manganese content (0.3 to 2.0 percent), chromium content (0.5 to 1.5 percent), and molybdenum content (0.2 to 0.5 percent). These values may shift based on the specific application or desired properties. Staying within these ranges also guarantees the most effective thermal treatment processes.
How Does Heat Treating Impact Hot Rolled Steel?
Heat treatment improves the mechanical properties of hot-rolled steel by changing the internal microstructure. Various processes include annealing, quenching, tempering, normalizing, advanced ductility, strength, and hardness. Heat treatment improves the material’s granule structure, internal stresses, and uniformity. The results differ depending on which industrial application is chosen. As with any procedure, initial steps must be followed to achieve the desired results.
Steps in Annealing and Normalizing
Steps in Annealing
- Heating: The steel must be heated to a specific value higher than the recrystallization value. This allows the entire crystalline structure to reorganize itself.
- Holding (Soaking): In this step, the temperature is constant for some time, allowing the metal’s entire structure to change.
- Cooling: I cool the steel slowly, often in a furnace or controlled environment, to help with the passive and active internal softening.
Steps in Normalizing
- Heating: I heat up to a value higher than the critical range for the microstructure to change into austenite.
- Holding: The steel needs to be elevated and remain at that temperature for a particular time to uniformly distribute its entire value.
- Cooling: I let the steel cool naturally in still air, further refining the grains and enhancing the mechanical attributes, such as strength and toughness.
The Role of Temper in Steel Hardness
Defining tempering qualities is a controlled heating technique applied to steel to relieve internal stresses that occur after hardening. It aims to adjust the balance of hardness and toughness. The steel is heated to a predetermined level, lower than the critical temperature, and then cooled in a specified manner. The tempering aims to decrease excessive brittleness while maintaining sufficient hardness.
Aspects in Tempering:
- Temperature Range:
-
-
- Low Tempering (150°F —300°F / 65°C —150°C) Increases hardness and resistance to wear. It is standard on cutting tools.
- Medium Tempering (300°F – 600°F / 150°C – 315°C): Exhibits balance between hardness and toughness, good for structural components.
- High Tempering (600°F – 1,100°F / 315°C – 590°C): Focused on toughness, usually applied to springs and heavy equipment.
-
- Duration:
-
-
- Regarding steel grade and kind, the time of executing tempered state is usually between 1 to 3 hours.
-
- Cooling Method:
-
-
- The most common method is air cooling, though oil or water quenching is sometimes used to meet certain conditions.
-
During tempering, hardening induces internal stresses in steel, changing its microstructure, typically to tempered martensite. The steel is now hardened, which means it possesses an optimal mix of strength, ductility, resistance, and durability, suitable for use across industries and in daily life.
Consequences of Internal Stresses on Strength
Ignoring the internal stresses on steel incredibly undermanages the structural integrity and imposes a serious risk on impact resistance. As many internal stresses form as the steel undergoes a hardening process, if not attended to, it can lead to a failure by cracking or brittleness under dynamic or cyclical load. Employing adequate fine tempering techniques ensures a good grade of malleability, preventing fatigue failure at changes in forces or even collapse due to tensile forces reaching 500 to 2000 MPa, depending on the alloy and treatment used. This makes these issues easily resolvable during the permanently deformed stage before reaching the collapse point.

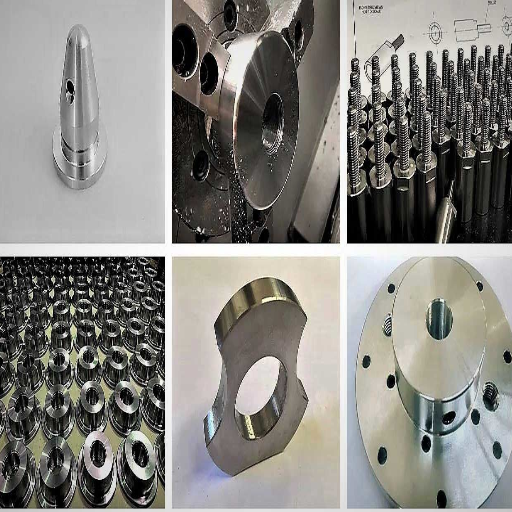

What are the applications that require hardened hot-rolled steel?
Hardened hot-rolled steel is critical in areas that require cutting-edge strength and extreme durability while still being able to withstand wear and deformation. Its most common uses are manufacturing heavy machinery, automotive parts like axles and gears, construction equipment, and high-stress structural components. Its superior characteristics also allow for manufacturing tools, dies, and pressure vessels where reliability in harsh conditions is prominent.
Industries Benefiting from Increased Strength
In my experience, the automotive, construction, and manufacturing industries rely on the advantages brought forth by strengthened components created from hardened hot-rolled steel. Automotive manufacturers widely use it for stress-tested components like axles and gears. In construction, this material is used in structural elements and equipment with high wear resistance and strength. Similarly, tools, dies, and other machinery parts used in manufacturing require a great deal of strength under harsh conditions, making it a necessity.
Common Uses in Sheet Metal Fabrication
Metal sheets can be transformed through myriad processes for different industrial needs. They are widely used in the aerospace, automotive, and electronic industries to manufacture brackets, enclosures, and panels. They are also used to make components for HVAC ducts, kitchen appliances, industrial equipment, and roofing.
Below are some noted characteristics of metal sheets:
- Material Options: For metal sheets, steel, aluminum, copper, and stainless steel are the most widely used due to their characteristic weight, corrosion resistance, and durability.
- Thickness (Gauge): The thinnest version starts at 30 gauge, measuring 0.012 inches, and goes all the way to 8 gauge (0.168 inches). The metal sheet must balance strength and flexibility; the application requirements gauge will account for that balance.
- Processes:
- Cutting: Depending on the material and the accuracy required, an XYZ technique, such as laser cutting, plasma cutting, or waterjet cutting, can be utilized.
- Bending: Utilizing press brakes to bend metal sheets to form angles and curves.
- Welding: One of the most essential techniques for parts joining. It can be performed easily. However, the technique must be chosen carefully based on the material used.
- Forming: Shaping the material includes stamping and rolling.
Metal sheet fabrication is bound to meet sharp quality parameters, while the processes employed ensure unmatched precision.
Importance of Tensile Strength in Construction
The role of tensile strength in construction is primary since it indicates the stress a material can withstand when being stretched or pulled until its breaking point. From my understanding, ensuring some structural steel or reinforced concrete has sufficient tensile strength is critical in ensuring the safety and vigor of buildings and infrastructure. Some significant factors include yield strength, when a material gets deformed permanently, and utmost tensile strength (UTS), the amount of stress that can be applied to a structural member. Generally, for structural steel, the tensile strength is between 400–550 MPa (megapascals), and for reinforced concrete, it surpasses plain concrete by a large margin. Attention to these parameters enables highly dynamic construction projects to endure grueling challenges like tension, wind loads, and seismic activities.
How Does Hot Rolled Steel Compare to Cold Rolled Steel?
The differentiating feature of hot-rolled and cold-rolled steel rests primarily in their processing techniques, affecting their characteristics and uses. Hot rolled steel is processed while the material is still at a high temperature, thus it is easier to shape and form it. However, it has a rougher surface finish and less precise dimensions. It is frequently applied in projects without highly critical tolerances, such as in constructing beams and simple structural components. Cold-rolled steel is processed further at room temperature, capturing a nice surface, tighter tolerances, and increased strength due to strain hardening. This makes cold rolled steel ideal for precisely manufactured items that require high-quality finishes, such as parts for automobiles or furniture. Ultimately, selecting the two materials depends on the project’s requirements.
The difference in Tolerances and Surface Finish
Concerning tolerances, cold-rolled steel offers much tighter and more precise measurements compared to hot-rolled steel. This occurs because cold rolling happens at room temperature, offering better control over the final dimensions. Likewise, the surface finish of cold rolled steel is significantly finer and smoother, making it ideal for aesthetic or high-precision uses. Steel that has been hot rolled, rougher in shape, and with a looser internal structure is better suited for projects that do not have exacting requirements for dimensions or the quality of the surface. This is due to the steel being processed at high temperatures and the subsequent cooling adding more surface inconsistencies.
Cost Implications: Is it more expensive than Hot Rolled?
Indeed, cold-rolled steel is more expensive than hot-rolled steel. This results from the additional cold rolling processes, which include higher precision, tighter tolerances, and improved surface finish, significantly increasing production costs. Due to the reliability placed on these areas, cold-rolled steel is better suited for high-performance applications where quality and precision become vital.
- Precision: Cold-rolled steel offers tight dimensional tolerances, often within ±0.01 mm, compared to the broader tolerances of hot-rolled steel.
- Surface Finish: Unlike hot rolled steel, whose surface texture is rough and scaly because of oxidation during high-temperature processing, cold rolled steel has a polished and smooth surface with a typical Ra value ranging from 0.20 to 0.80 micrometers.
- Strength: Regarding strength, hot-rolled steel is mechanically weaker than cold-rolled steel because it has undergone several processes, such as strain hardening, which increases yield and tensile strength, making it more potent.
- Cost Range:
- Depending on the size, grade, and market fluctuation, cold-rolled steel costs 20-50% more than hot-rolled steel and is more cost-effective.
- Hot-rolled steel is more economical because it is less expensive, especially for large-scale structural applications with less precise tolerances and surface smoothness requirements.
In conclusion, cold-rolled steel can command the highest price, but its superior qualities justify the cost in precision-focused applications. On the other hand, hot-rolled steel is more suited for projects where functionality takes priority over beauty, making it an economical choice.
Performance in Weldability and Machinability
While evaluating weldability, hot-rolled steel excels at rolled steel because the latter contains a higher carbon content, increasing the chances of cracking during welding. In comparison, hot-rolled steel is much more pliable and forgiving. Cold-rolled steel is weldable; however, extra work must be done before welding, such as pre-heating or choosing specific filler metals that increase strength and hardness.
More advantageous machinability-wise, cold-rolled steel has a smoother surface with tighter tolerances, allowing for precision machining with less wear on the tools. Forged aspects include:
- Weldability for Hot Rolled Steel: It is usable with most types of welding, and its regular carbon content ranges from 0.04 to 0.25%.
- Weldability for Cold Rolled Steel: Requires pre-heating for grades with carbon content greater than roughly 0.30%.
- Machinability for Cold Rolled Steel: Greater tensile strength, such as ~500 MPa for inevitable cold rolled grades, guarantees more distinct and accurate cuts during machining.
Ultimately, it all depends on the specifics of your project. Heavy structural welds would require hot-rolled steel, while precision machining would require cold-rolled steel.
References
Frequently Asked Questions (FAQ)
Q: Can hot-rolled carbon steel be hardened?
A: Hot-rolled carbon steel can be hardened, but the process and effectiveness depend on its carbon content. Low-carbon steel, such as mild steel or A36, generally has limited hardening capability compared with higher-carbon steel. To achieve hardening, heating and cooling processes, like quenching in water or brine, are used, especially in steels with higher carbon content.
Q: Why is mild steel considered difficult to harden?
A: Mild steel has a low carbon content, making it less responsive to heat treatment processes like quenching and tempering. This means it cannot achieve the higher hardness levels of steels with higher carbon content. However, it is often used where high strength is not a primary requirement.
Q: How does the composition of A36 steel affect its hardening capabilities?
A: A36 steel is a standard structural steel with low carbon content, similar to mild steel. This composition means it has limited hardening capability, as it cannot achieve higher hardness levels without additional alloying elements or carbon content.
Q: What is the difference between hot rolled and cold finished steel in hardening?
A: Hot-rolled steel is typically easier to work with and less expensive but has a rougher surface finish and lower strength than cold-finished steel. Cold-finished steel is processed with tighter tolerances, and its work-hardened surface can achieve higher hardness and stability, making it better suited for precision applications.
Q: Can low-carbon steel bars be heat treated to increase strength?
A: Low-carbon steel bars can be heat treated, but their strength increase is limited due to their low carbon content. They are typically used in applications where high ductility and weldability are prioritized over strength.
Q: What role do alloying elements play in the hardening of steel?
A: Alloying elements like chromium, nickel, and molybdenum can significantly enhance the hardening capability of steel by contributing to the formation of harder microstructures and increasing its overall strength and hardness.
Q: How does the process of rolling affect the properties of steel?
A: Rolling affects steel’s grain structure and mechanical properties. Hot-rolled steel is cooled quickly, resulting in a rougher surface and less precise dimensions. In contrast, cold-rolled steel is processed at room temperature for a better surface finish and tighter tolerances.
Q: What is the advantage of using cold-rolled steel over hot-rolled steel for specific applications?
A: Cold-rolled steel is often used where a better surface finish, tighter tolerances, and higher strength are required. Due to work hardening, it is typically more complicated than hot-rolled steel, making it ideal for precision parts and applications requiring higher performance.
Q: Can steel plates be hardened after the hot rolling process?
A: Steel plates can be hardened after the hot rolling through heat treatment methods such as quenching and tempering. However, the effectiveness of these processes depends on the steel’s carbon content and composition.
